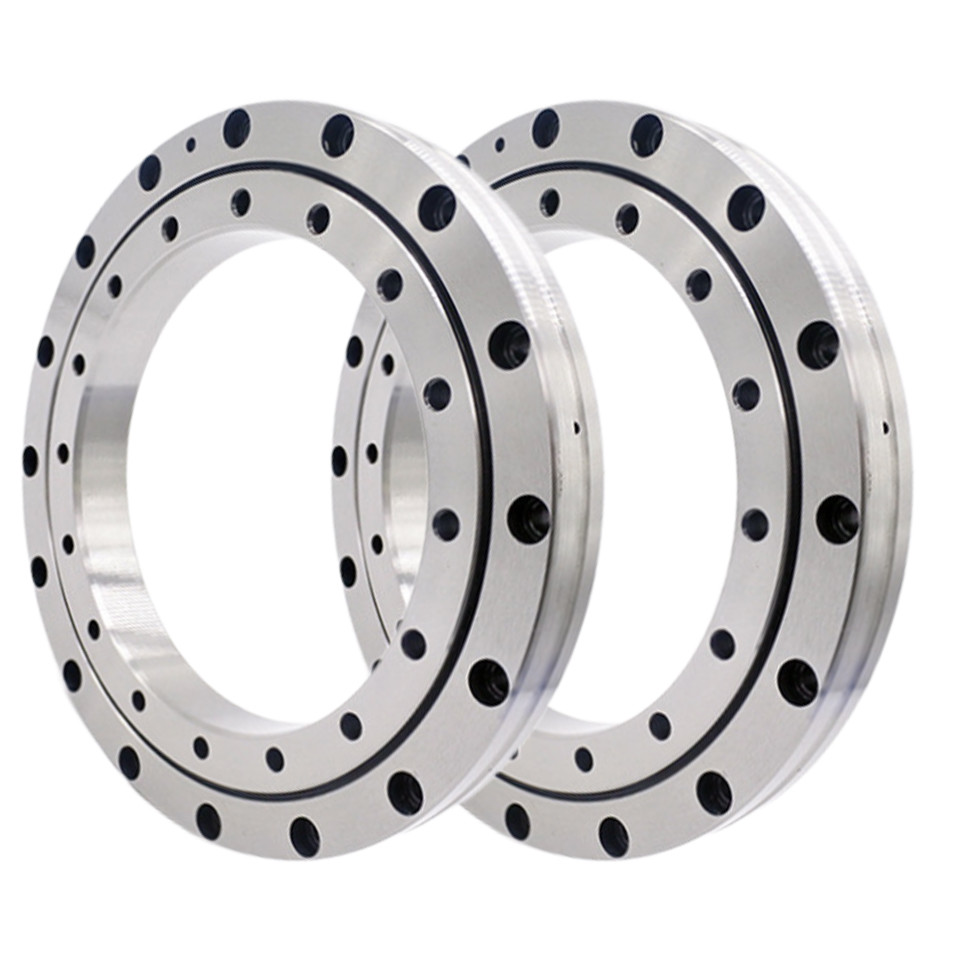

Slewing Bearing RU445 Crossed Roller Bearing RU445G 350X540X45mm For Robot
Description: of Slewing Ring Bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
Specifications: of Slewing Ring Bearing
| Product Name | Slewing Ring Bearing |
| Brand | Deep dream&OEM |
| Model No | RU445 |
| Sizes(mm) | 350X540X45mm |
| Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P5, P6 |
| Clearance | C0, C2, C3, C4 |
| Packing | Original Package |
| model number | Main dimension | Shoulder height | weight |
| | | Roller pitch circle diameter dp | width B | Greasing hole d1 | r | ds | Dh | kg |
| RU42 | 20 | 70 | 41.5 | 12 | 3.1 | 0.6 | 37 | 47 | 0.62 |
| RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 0.62 |
| RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 1 |
| RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 2.6 |
| RU124X |
| RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 4.9 |
| RU148(X) |
| RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 6.8 |
| RU178(G) |
| RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 11.4 |
| RU228(X) |
| RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 21.3 |
| RU297(X) |
| RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 35.4 |
Advantage:
1. High speed, high precision
2. Long service life
3. Low noise and good performance
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Earth moving machinery, excavator, disintegrator, stacker reclaimer, grader, roller, dynamic rammer, rock drilling machinery,
roadheader, concrete machinery, feeding machinery, lifting machinery, foundation treatment machinery, port equipment, new energy equipment, metallurgical equipment, Ferris wheel
